حواجز التطويق

حجز الرغوات ومخلفات البناء لمنع تلوث الماء.

حواجز التطويق هي حواجز عائمة تستخدم في تطويق الرغوات المتراكمة ومخلفات البناء العائمة لإزالتها من الماء بسهولة.

نباشر في إيكوكوست مهام تصميم وتصنيع وتوفير وتركيب أصناف مختلفة من حواجز الرغوات التي تحمل اسم العلامة التجارية ®Ecobarrier.

نظرًا لاختلاف موقع الإنشاء والبيئة البحرية، يمكن تصميم الحواجز وتصنيعها حسب الطلب لتناسب متطلبات المشروع.

نوفر، بفضل خبرتنا الواسعة في التعاقدات، خدمة الدعم بعد البيع التي لا يمكن مضاهاتها بسهولة. نجحنا في إنجاز حواجز التطويق في عدة مواقع في جميع أنحاء العالم.

Learn more about Marineforce - our proprietary marine barrier calculator to get free assistance with your force calculations



مواصفات

Ecobarrier Containment Booms: Foam Booms
ProductsEcobarrier Foam Booms
ModelsEFOB-range
ApplicationsEcobarrier Foam Booms are suitable for areas with different current intensities that require containment of high volumes of surface foam.

Ecobarrier Foam Booms

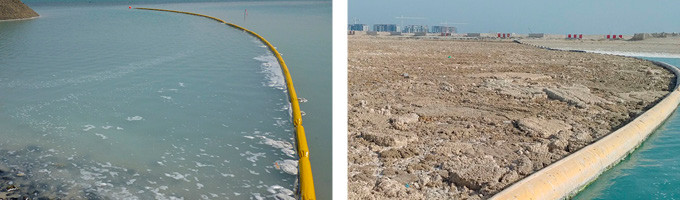

foam-boom-tech-pic

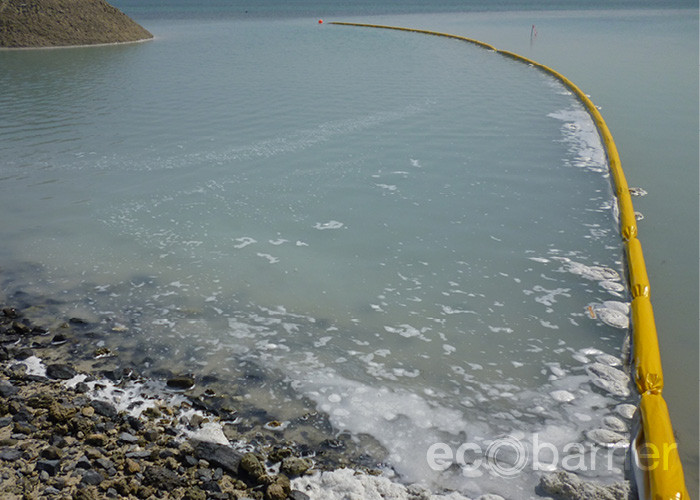

Our Ecobarrier® Foam Booms are used to block or capture high volumes of surface foam or debris. They are available in four different classes built to withstand low, medium or heavy currents.

The booms are made of UV stabilized PVC membrane fabric in yellow color, but can be produced in different color variations upon request.

To improve identification of the Ecobarrier Foam Booms, navigation buoys and Hyperion lanterns can be provided to ensure clear demarcation of the area and an improved night-time lit environment. Further customization is available, as we always aim to meet the needs and requirements of client specific marine environments.

Technical Specifications
Classes Class I Class II Class III Class IV
Models EFOB1-500 EFOB2-600 EFOB3-850 EFOB4-1150
Total Weight 2 kg/m 4 kg/m 7-8 kg/m 14 kg/m
Total Height 500 mm 600 mm 850 mm 1,150 mm
Freeboard 150 mm 200 mm 350 mm 650 mm
Draft 350 mm 400 mm 500 mm 500 mm
Panel Length 25 M 25 M 20 M 20 M
Fabric Tensile Strength 63 kN 63 kN 84 kN 84 kN
Customization & Add-On Options Demarcation lighting powered by Hyperion HL-1; Marine buoys; Anchoring; Polyform A-series
