Barreras de Contención de Aceites e Hidrocarburos

Proteger el medioambiente marino de vertidos de aceites e hidrocarburos.

Estas se usan principalmente para proteger áreas marinas del daño causado por vertidos de aceites e hidrocarburos. Se pueden implementar en puertos, bahías, proyectos de tuberías y de tomas, y también en puertos deportivos y vías navegables, para protegerlas de vertidos de aceites. Adicionalmente se emplean para proteger zonas marinas de residuos indeseados.

Aparte del diseño y entrega del producto, Ecocoast puede proporcionar un servicio completo incluyendo la instalación, mantenimiento y retirada.

Nuestra experiencia previa en construcción nos permite ofrecer productos probados y ensayados. Al haber usado la gama Ecobarrier® en nuestros propios proyectos, sabemos lo que funciona y lo que no.

Conoce más sobre Marineforce - nuestro propio software de cálculo de barreras marinas para conseguir asistencia gratuita con tus cálculos de esfuerzos.

Especificaciones

Ecobarrier Oil Booms: Fence BoomsEcobarrier Oil Booms: Solid Flotation Booms Ecobarrier Oil Booms: Permanent Booms - Harbour Boom
ProductsEcobarrier Foam-Filled Oil BoomsEcobarrier Solid Flotation BoomsEcobarrier Harbour Booms
ModelsEFFB-rangeESFB-rangeEHB-range
ApplicationsSuitable for shorter term installations and calm water environments.Suitable for longer term deployment and wider use in low, moderate and high currents.Suitable for permanent installations for petroleum pollution, foam, silt and other marine debris.

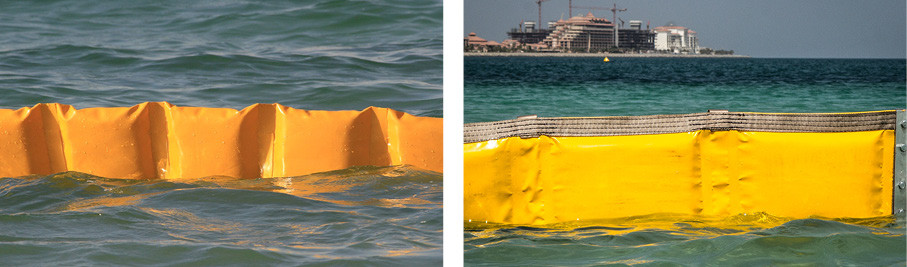

Ecobarrier Foam-Filled Oil Booms

Our Ecobarrier® Foam-Filled Oil Booms are typically used for static or low current applications, featuring a series of flat panels that float on the water to contain oil and debris.

The floats are closed-cell to avoid taking up any water. Manufactured in UV stabilized PVC membrane fabric, the booms are fitted with zipties (class I) or ASTM slide connectors (class II) for easy coupling of the panels and quick deployment.

They can be deployed much faster than any other containment boom, due to their design, and come in five sizes.

Technical Specifications
Classes Class I Class II
Models EFFB1-350 EFFB1-500 EFFB2-350 EFFB2-500 EFFB2-750 EFFB2-900 EFFB2-1200 EFFB2-1500
Total Height (mm) 350 500 350 500 750 900 1200 1500
Freeboard (mm) 150 200 150 200 250 350 425 500
Draft (mm) 200 300 200 300 500 550 775 1000
Ballast Chain (mm) 8 10 10 10 12 16 16 16
Customization & Add-On Options Demarcation lighting powered by Hyperion HL-1; Marine buoys; Anchoring; Polyform A-series

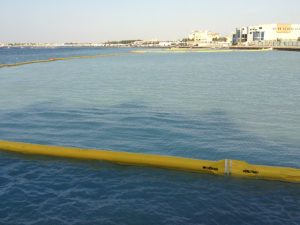

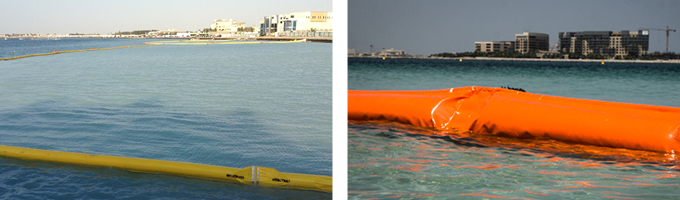

Ecobarrier Solid Flotation Booms

Ecobarrier Oil Booms: Solid Flotation Booms

Our Ecobarrier® Solid Flotation Booms can be deployed in various water environments, ranging from low to moderate and high currents.

It is a general purpose boom that will provide years of performance. The boom is made of UV-stabilized PVC membrane with chain ballast, grab handles and anchor points, making it easy to install.

They are available in different sizes and tensile strengths. We also provide solutions for custom requirements.

Technical Specifications
Models ESFB-
360
ESFB-
460
ESFB-
610
ESFB-
750
ESFB-
920
ESFB-
1060
Total Height 360 mm 460 mm 610 mm 750 mm 920 mm 1060 mm
Freeboard 160 mm 150 mm 200 mm 250 mm 300 mm 320 mm
Draft 200 mm 310 mm 410 mm 500 mm 620 mm 700 mm
Panel Length Up to 30 M Up to 30 M Up to 30 M Up to 30 M Up to 30 M Up to 30 M
Customization & Add-On Options Demarcation lighting powered by Hyperion HL-1; Marine buoys; Anchoring; Polyform A-series

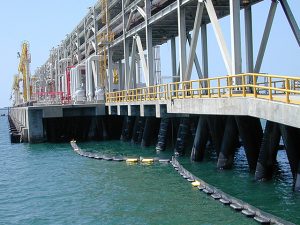

Ecobarrier Harbour Booms

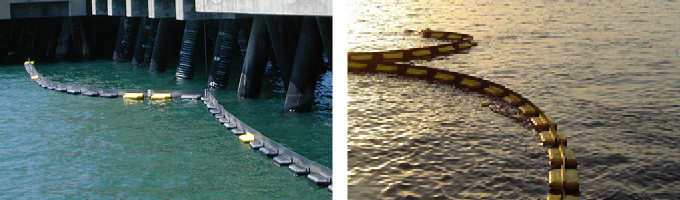

harbour-boom-table-tech-pics

Our permanent boom – the Ecobarrier® Harbour Boom – is a heavy-duty, durable oil boom designed to stay in the water for years with minimum maintenance.

Typical installations include petrochemical shipping terminals, desalination plants and marinas.

The boom is constructed of very durable high tensile material. Its floats are rotary-moulded, foam filled, long and wide, providing superior buoyancy and high stability in rough water, and eliminating the need for bottom ballast to keep the boom upright.

Technical Specifications
Models EHB-450 EHB-600 EHB-800 EHB-900 EHB-1200
Total Height (mm) 450 600 800 900 1200
Freeboard (mm) 300 300 300 300 400
Draft (mm) 150 300 500 600 800
Panel Length (M) Up to 30 Up to 30 Up to 30 Up to 30 Up to 30
Customization & Add-On Options Demarcation lighting powered by Hyperion HL-1; Marine buoys; Articulated beacons; Ecomoor; Anchoring
