The Ecobarrier® Floating Buoys are designed for inland waterways.

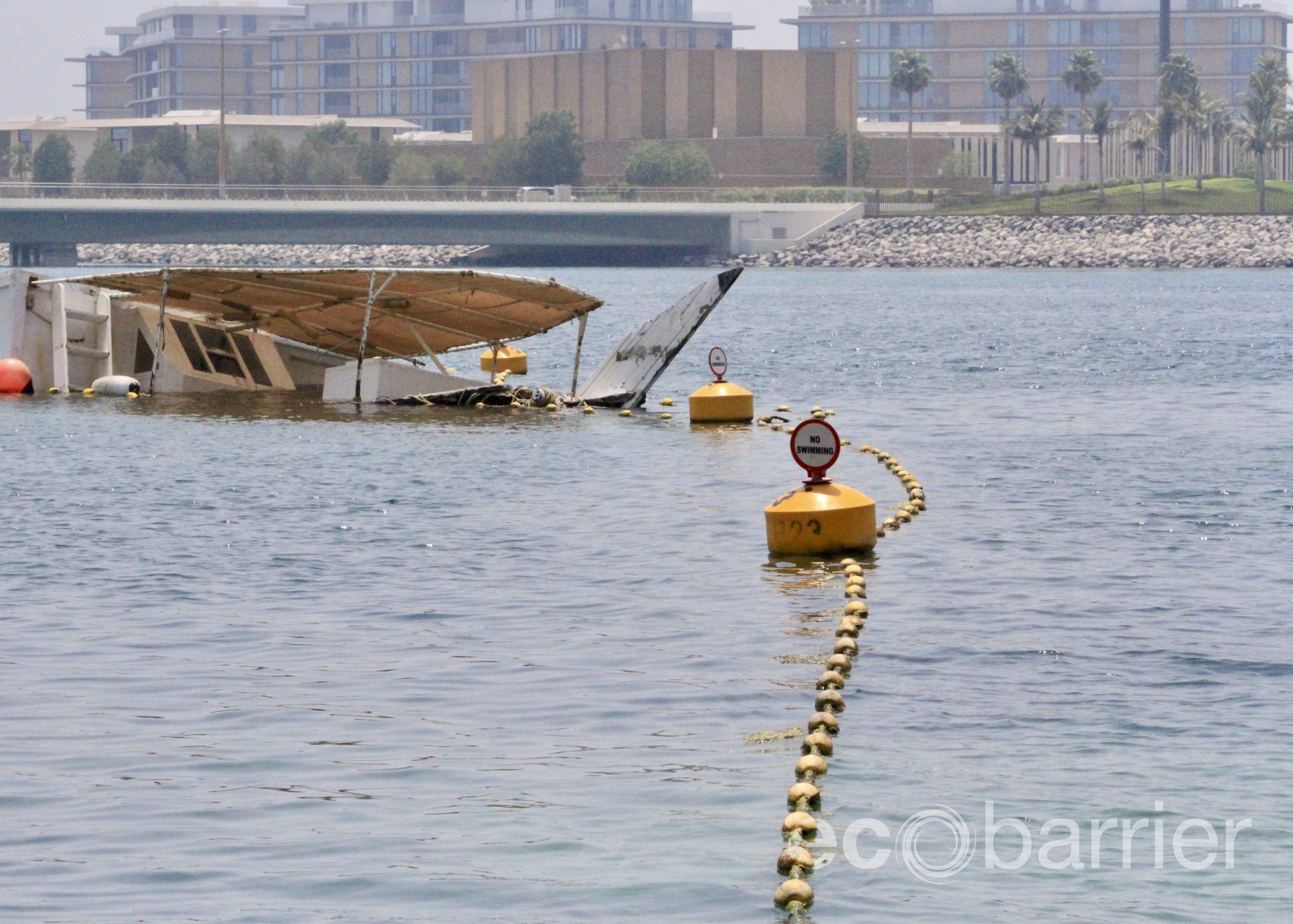

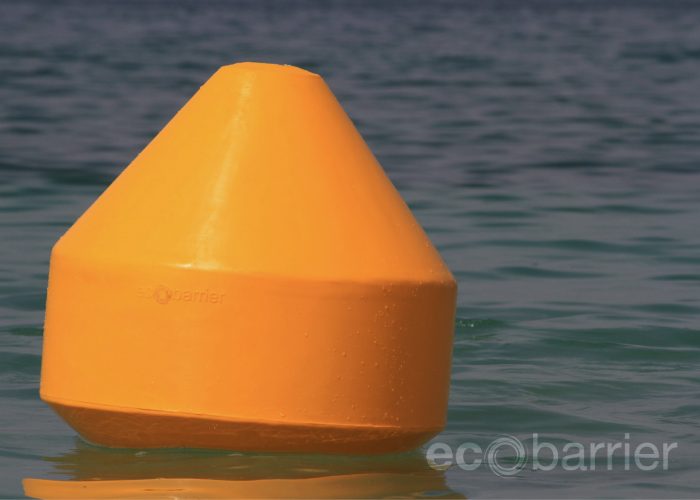

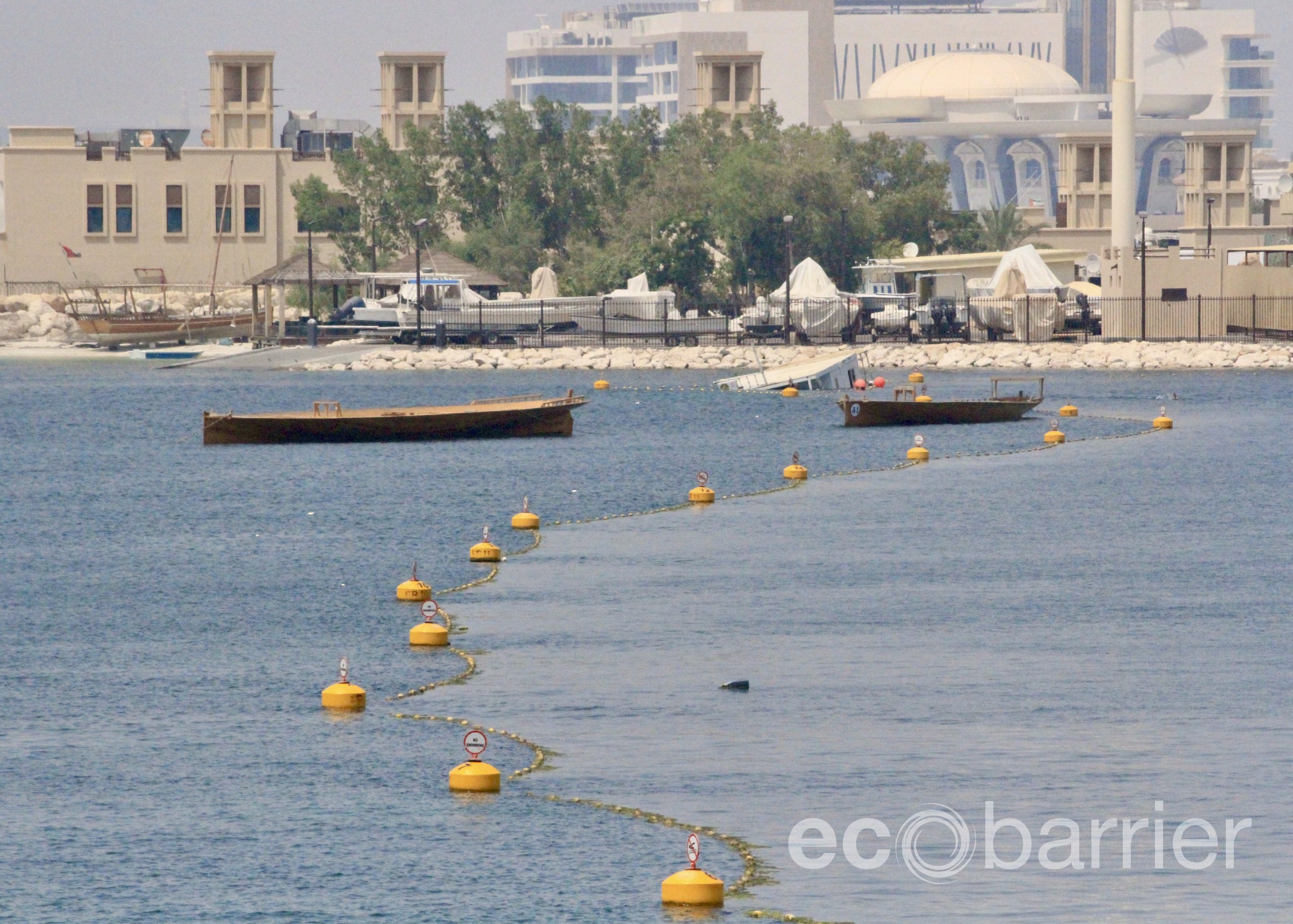

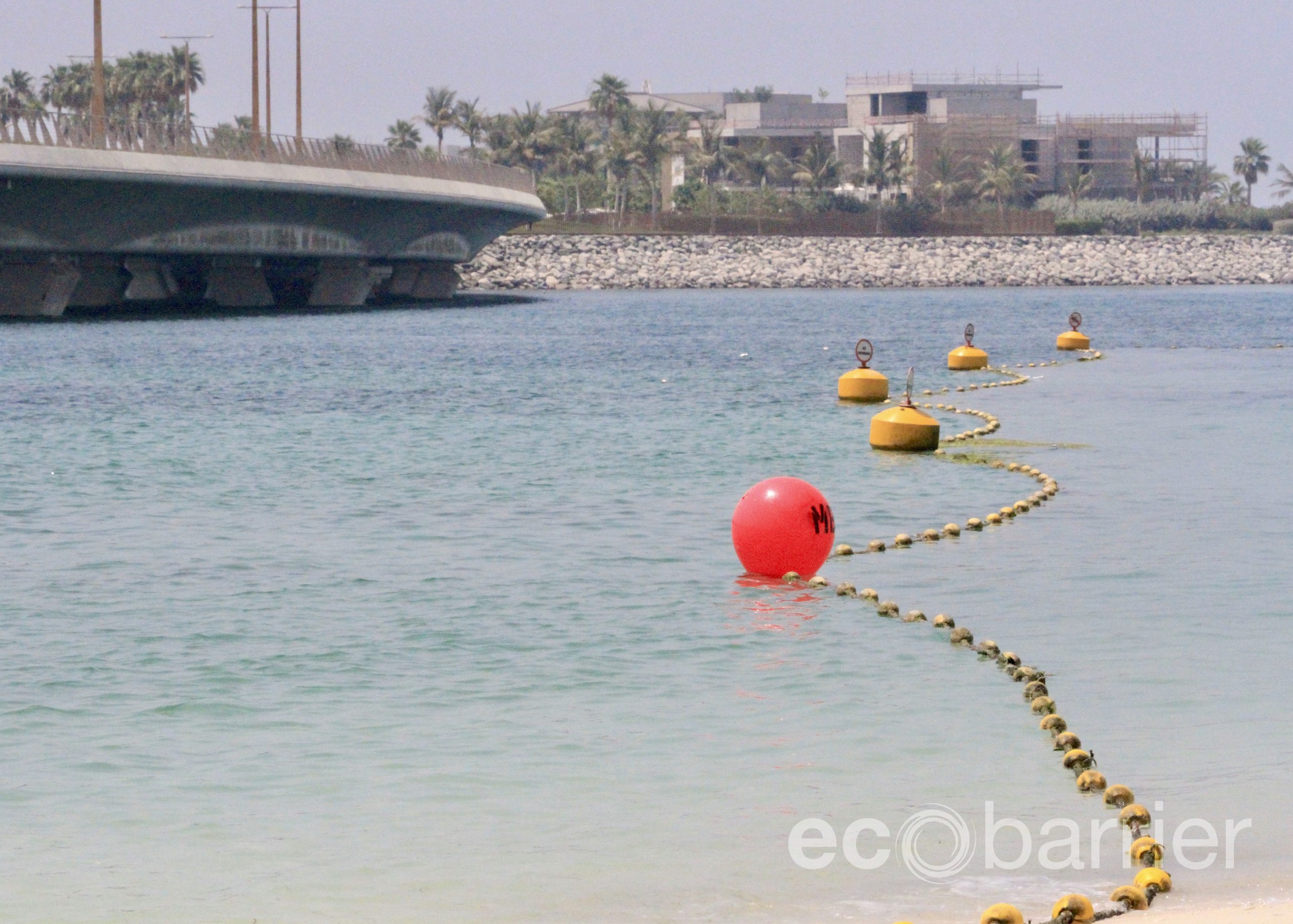

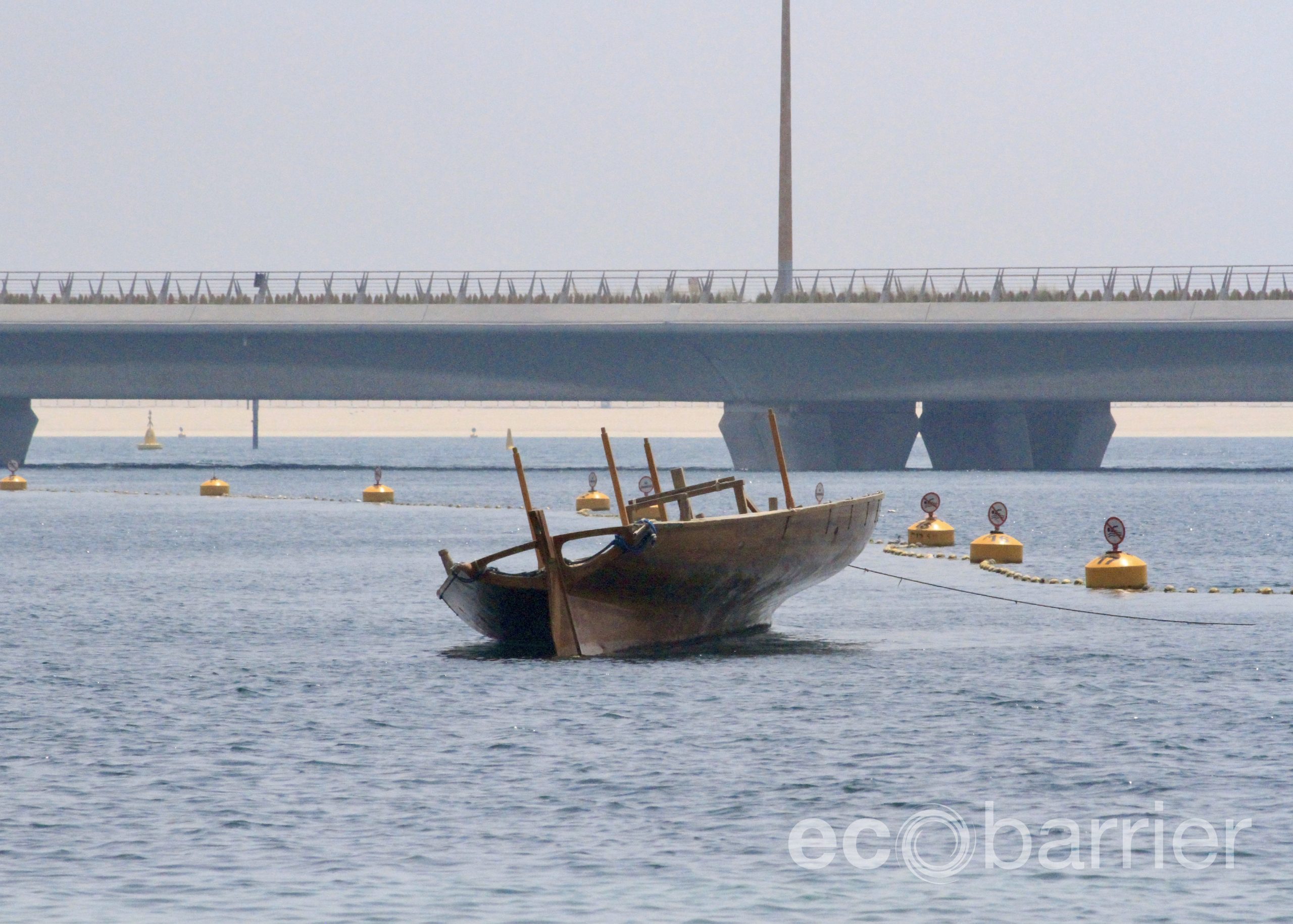

The 650mm buoys are mainly used for shallow water or nearshore installations. They are ideal for marking safe water zones and limits of swimming areas, temporary construction areas and racing marks. The buoys are approved and specified by Dubai Municipality in the United Arab Emirates. A certificate can be provided upon request.
The 400mm buoys are constructed for mooring or demarcation. They are spherical shaped with stainless steel inserts, greatly reducing current drag and improving mooring performance.
All buoys are available in yellow, red or green, as per IALA recommendations E-108.
To summarize, what are their benefits?
• Small and light weight for easy installation.
• Made for high UV environments; color will not fade or bleach.
• Integrated central pipe to allow customization.
• Complete closed-cell PU foam filling, designed to float even if outer shell is ruptured.
Get in touch with us to find out how to navigate safer and smarter. Learn more in our Knowledge Hub > where you will find more information about Moorforce - our advanced, proprietary mooring software.
|Products||Ecobarrier Floating Buoys||Ecobarrier Floating Buoys|
|Applications||Demarcation or mooring.||Shallow water or nearshore installations.|
Ecobarrier Floating Buoys

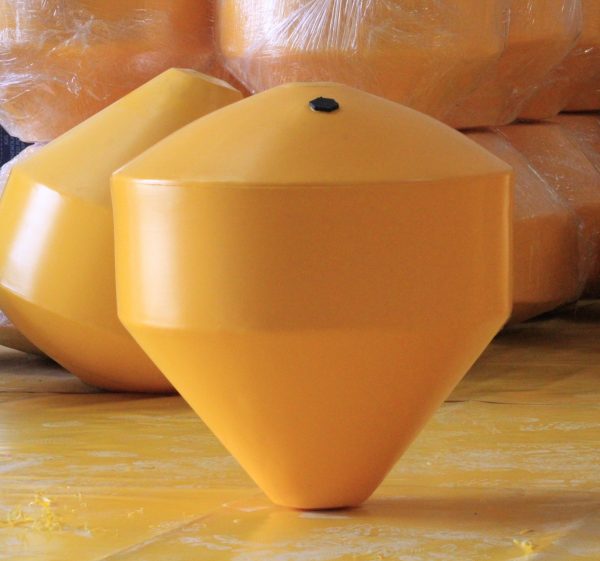

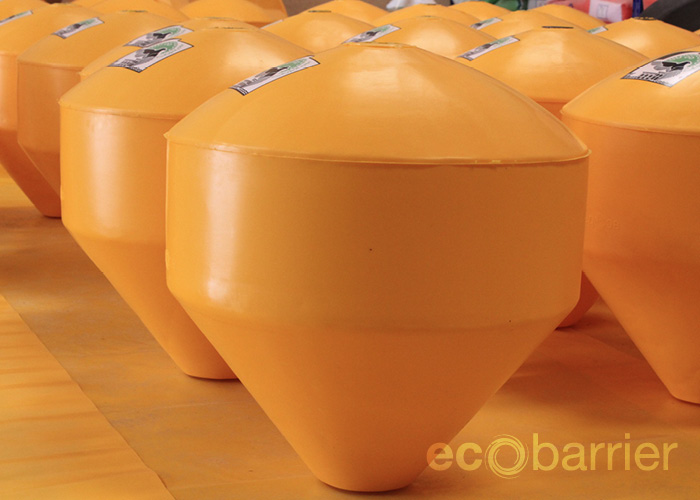

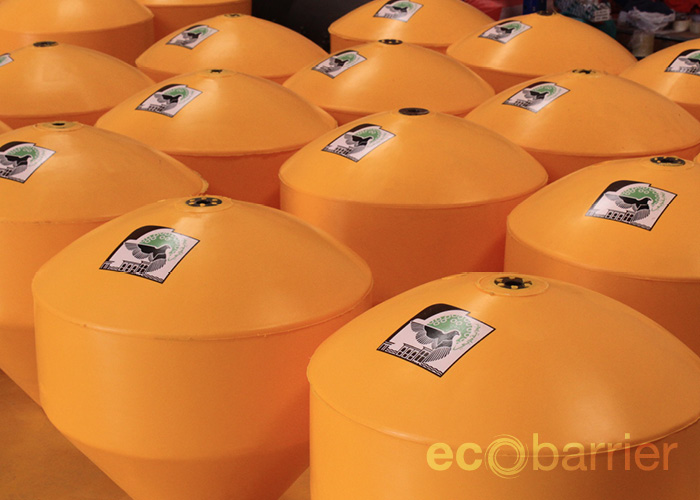

Manufactured from strong, durable UV-stabilized virgin polyethylene, the buoys are filled with closed-cell polyurethane foam for additional strength and durability. Small and lightweight, they are rotationally molded with a wall thickness of 6-7mm. They can be customized with on-mould or mould-in graphics.
|Diameter||400 mm||650 mm|
|Nom. Draft||130 mm||160 mm|
|Floatation||Closed-cell PU foam|
|Wall Thickness||6 mm||7 mm|
|Color||Yellow, red or green, as per IALA recommendations E-108|
|Reserve Buoyancy||30 kg||82 kg|
|Total Weight||3.5 kg||20 kg|
|Maximum Mooring Weight||20 kg||82 kg|
|Customization & Add-On Options||On-mould and mould-in graphics; Hyperion marine lanterns; Ecomoor; Anchoring|
