Ecobarrier Navigation Buoys

Ecocoast offers one of the most comprehensive lines of marine Aids to Navigation (AtoN) solutions to aid safe navigation worldwide. A full range of navigation buoys, marine lanterns and mooring systems is available.

The navigation buoys are used for demarcation and navigation purposes in marine, coastal and offshore areas. All buoys can be customized with mould-in graphics, solar lanterns or panels, signage, radar reflectors or monitoring systems. The buoys are highly visible, conform to IALA guidelines (International Association of Marine Aids to Navigation and Lighthouse Authorities). They are designed for harsh UV environments, using the highest quality UV-stabilized virgin polyethylene. In addition, they seamlessly connect with marine demarcation barriers.

Get in touch to find out how to navigate safer & smarter with Ecobarrier and GISMAN Navigation Buoys, including marine lanterns and mooring systems. Our team is highly trained in identifying the right specifications and designing navigation requirements, as per IALA norms.

Ecobarrier Navigation Buoys

Ecobarrier Navigation Buoys

Ecobarrier Navigation Buoys aiding safe navigation in nearshore marine environments.

Our team of experts can assist you in identifying the right specifications, ensuring compliance with IALA norms, and providing the necessary technical support to guarantee safe navigation.

The buoys provide exceptional visibility and durability, even in extreme weather conditions. They offer additional protection in the unlikely event of damage.

Moorforce, our proprietary force calculator helps understand the forces placed on marine buoys and aids mooring requirements.

Technical Specifications for Ecobarrier Navigation Buoys
  • Product code

    :

    ENB-1200 | ENB-1500 | ENB-1800

  • Product customizations

    :

    Mould-in graphics, warning signage/graphics, IALA available colors, branding

  • Product add-ons

    :

    Water quality monitoring (WQM), vessel monitoring, smart marine lanterns, Ecomoor Mooring Line, alternative anchoring, marker pole, monitoring & maintenance software

  • Locations

    :

    Nearshore

  • Tidal flows

    :

    Moderate to strong (< 1.5m/s)

  • Waves

    :

    Short duration or moderate exposure (< 1.5m)

  • Installation duration

    :

    Medium to long

GISMAN Navigation Buoys

GISMAN Navigation Buoys

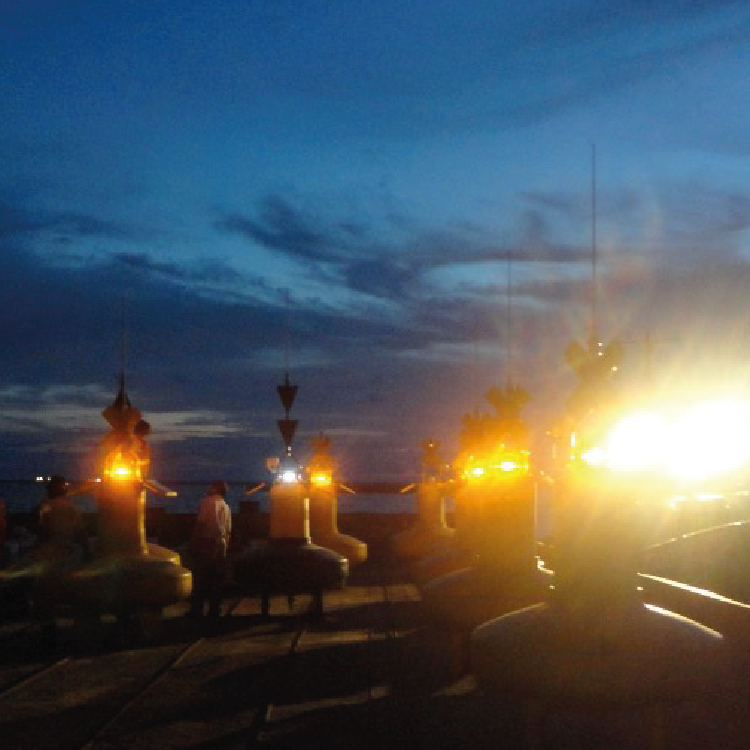

GISMAN Navigation Buoys are modular and can operate in all marine environments.

GISMAN is the pioneering designer and manufacturer of modular polyethylene navigation buoys.

Our partnership with GISMAN has allowed us to expand our Ecobarrier range with 8 buoy models designed for all types of applications. All GISMAN buoys are manufactured using durable UV-stabilized virgin polyethylene that is pre-compounded to reduce color ageing and filled with expanded polystyrene (EPS) foam for added durability and buoyancy.

‼️ The product line now also includes GISMAN Smart Marine Lanterns, offering a vast selection of self-contained LED lanterns for ports and coastal beaconing, ranging from 1-30 nautical miles.

Technical Specifications for GISMAN Navigation Buoys
  • Product code

    :

    GBP-900 | GBR-1250 | GBP-1500 | GBP-1800 | GBM-2000 | GBM-2500 | GB-2600-ECO | GBM-3000

  • Product customizations

    :

    Mould-in graphics, warning signage/graphics, IALA available colors, branding

  • Product add-ons

    :

    Water quality monitoring (WQM), vessel monitoring, smart marine lanterns, Ecomoor Mooring Line, alternative anchoring, marker pole, monitoring & maintenance software

  • Locations

    :

    Inshore, nearshore, offshore

  • Tidal flow

    :

    Strong (> 1.5m/s)

  • Waves

    :

    Extended exposure (> 1.5m)

  • Installation duration

    :

    Medium to long

GISMAN Smart Marine Lanterns

Smart marine lanterns

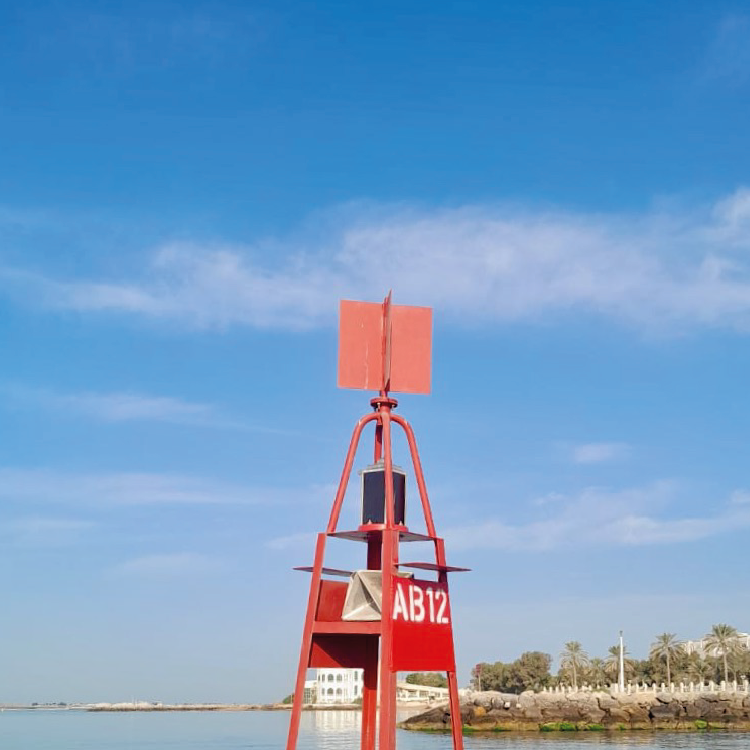

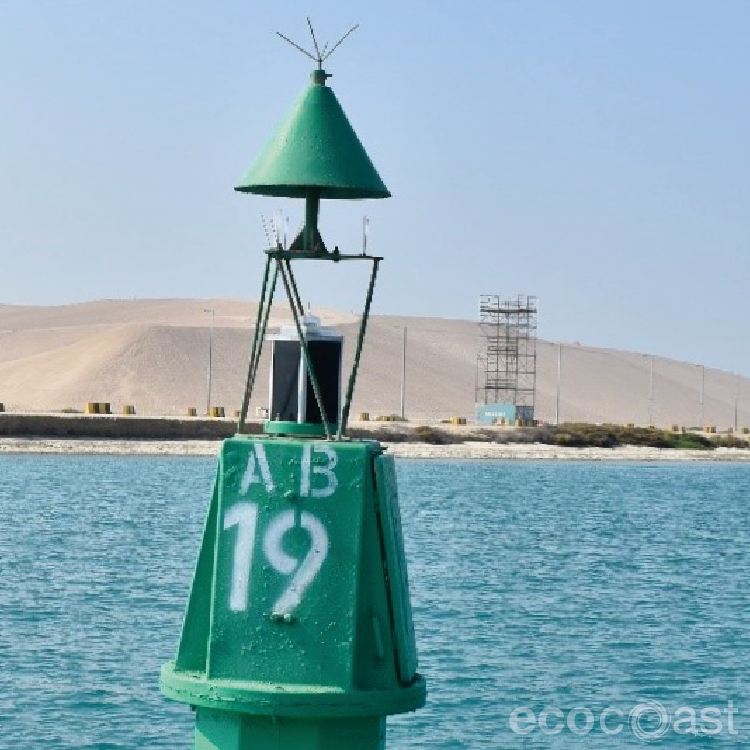

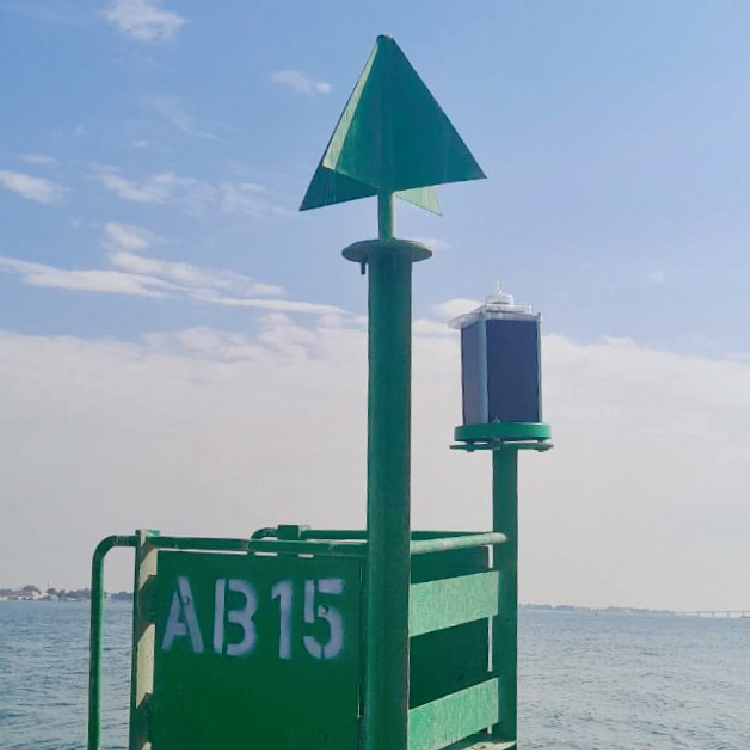

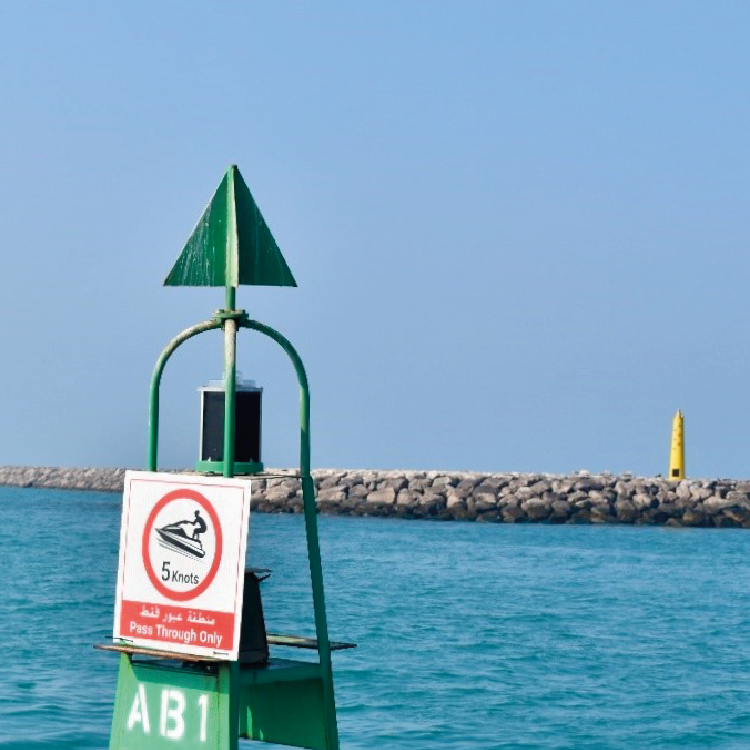

GISMAN Smart Marine Lanterns: Remote monitoring, multi-network connectivity, two-way control, saving on maintenance and carbon.

Introducing our latest addition: GISMAN smart, self-contained solar LED lanterns, engineered for all marine environments. Designed to ensure safe navigation, these lanterns deliver high-visibility lighting with a range of up to 17 nautical miles, making them ideal for demarcation, temporary works and permanent marine applications.

Built with the highest-grade silicon solar modules, these lanterns offer exceptional charging efficiency and reliable autonomy, even in extreme weather. The robust, marine-grade construction ensures long-lasting durability and IP68-rated protection for maximum resilience against water ingress.

Simplify navigation management and reduce operational costs with:

Remote monitoring & maintenance: Access real-time performance data and system health anytime, anywhere.
Multi-network connectivity (GSM, Satellite, LoRa): Continuous comms, even in the most remote maritime locations.
Two-way communication: Diagnose and resolve issues remotely – no need for onsite visits.

Technical Specifications for GISMAN Smart Marine Lanterns
  • Product range

    :

    GSC-range

  • Product code

    :

    GSC-3 | GSC-5-ES | GSC-5-SS | GSC-5-MS | GSC-7-SS | GSC-7-MS | GSC-8

  • Locations

    :

    Inshore, nearshore, offshore

Hyperion Marine Lanterns

Hyperion Marine Lanterns

Hyperion Marine Lanterns for nearshore demarcation purposes.

A range of self-contained solar LED marine lanterns, up to 6 nautical mile visible range, for demarcation purposes, temporary works and nearshore applications.

The solar module is made out of the highest-grade silicon, ensuring the highest efficiency rates. It is IP68 rated and comes with a warranty of 2 years. Access the technical specifications by downloading the datasheet.

Technical Specifications for Hyperion Marine Lanterns
  • Product range

    :

    HL-range

  • Product code

    :

    HL-1 | HL-3 | HL-5

  • Locations

    :

    Nearshore

Ecomoor Mooring Line

Ecomoor Mooring Line for AtoN

Introducing Ecomoor, a sustainable, neutrally buoyant mooring line that prevents seabed damage by floating without touching the seabed.

This environmentally-friendly solution protects sensitive ecosystems like coral reefs and seagrass habitats. It also focuses on energy-efficient production and the use of recyclable materials to significantly reduce carbon emissions.

Ecomoor incorporates advanced technology with a strength stronger than steel, making it reusable and scalable through its modular design. Its design is lighter than traditional chains, simplifying transportation, installation and maintenance processes.

Moreover, the absence of chain links reduces abrasion, thereby cutting down on maintenance requirements. With a lifespan of up to 15 years, Ecomoor provides a durable and sustainable solution for marine environments.

Technical Specifications for Ecomoor Mooring Line
  • Product code

    :

    EMM

  • Applications

    :

    Demarcation & navigation buoys, deep moorings, aquaculture, floating solar

EcoCoast

Our ETHOS

To provide solutions for environmental protection, safety and security applications – engineered to monitor, protect and regenerate. We follow the Ecocoast 4Ds framework to ensure innovation, sustainability and long-term impact.


EcoCoast

SAFETY RANGE

EcoCoast

FAQS

Ecocoast offers a comprehensive range of marine Aids to Navigation (AtoN), including navigation buoys, marine lanterns, and mooring systems. These solutions are suitable for use in inshore, nearshore, coastal, and offshore environments, with models designed for varying tidal flows and wave conditions.

Ecobarrier and GISMAN Navigation Buoys ensure safe and reliable navigation by providing exceptional visibility, durability, and compliance with IALA guidelines. Their modular design, customizable options, and compatibility with advanced monitoring systems make them ideal for diverse marine applications.

Ecocoast’s AtoN products are made from UV-stabilized virgin polyethylene, ensuring long-term durability and resistance to harsh environmental conditions. GISMAN buoys also feature expanded polystyrene (EPS) foam filling for added buoyancy. Technologies include self-contained LED lanterns , monitoring systems, and the proprietary Moorforce calculator for mooring force assessments.

Yes, all buoys can be customized with molded-in graphics, warning signage, branding, IALA-compliant colors, and site-specific features such as solar panels, radar reflectors, and monitoring equipment.

The buoys are engineered using high-visibility colors and GISMAN marine lanterns with visibility ranges from 1 to 30 nautical miles. They are built to withstand strong tidal flows and extended wave exposure, ensuring performance in demanding environments.

Ecocoast’s AtoN products are designed to be highly adaptable, with support for a wide range of additional features and integrated systems. These include water quality monitoring (WQM), vessel monitoring systems, and GISMAN marine lanterns for enhanced visibility. For mooring flexibility, Ecomoor Mooring Lines and Ecoreef Mooring Blocks can be incorporated, along with alternative anchoring systems. Additional accessories such as marker poles and GISMAN A2NGO connectivity further enhance functionality, making the buoys suitable for complex navigation and monitoring requirements.

GISMAN buoys stand out due to their modular design, durable materials, and innovative technology. They are made from pre-compounded materials to reduce color fading, foam-filled for enhanced buoyancy, and suitable for all marine zones—from inshore to offshore—withstanding strong tidal currents and extreme wave conditions.
